语义分割是一项计算机视觉任务，涉及对图像中的每一个像素进行分类和标记。与识别并围绕物体放置边框的对象检测不同，语义分割提供了对图像更细粒度的理解，能够在像素级别勾勒出对象边界。

我将使用U-Net结合MobileNet作为基准架构。

U-Net：

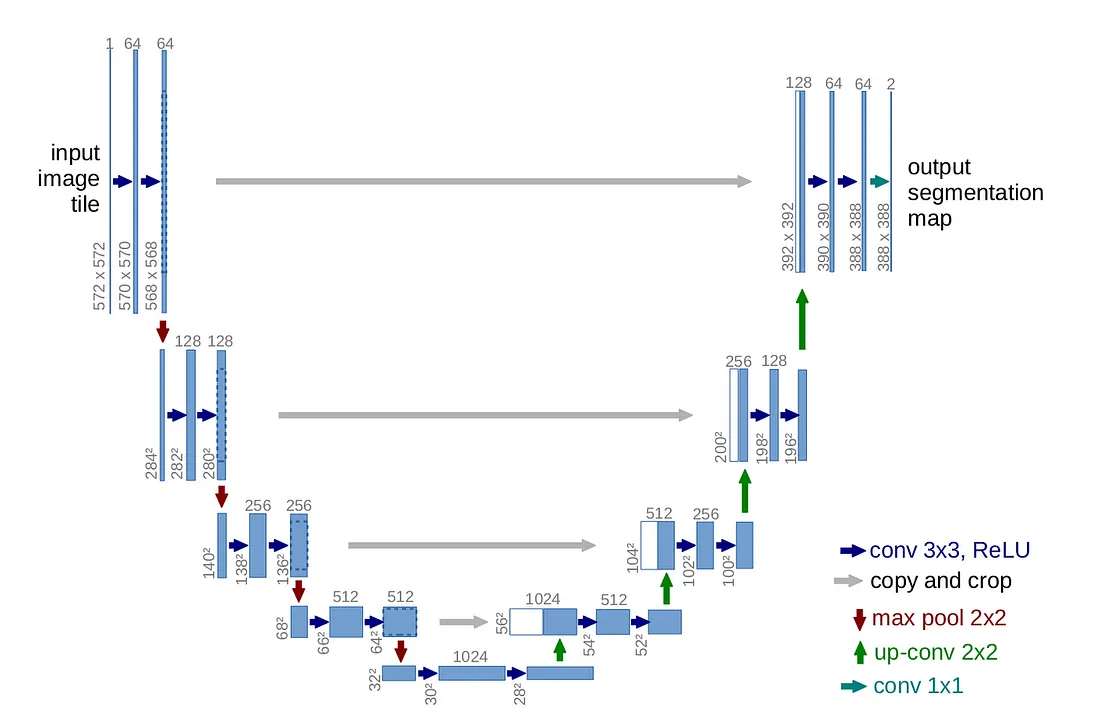

• U-Net的特征是U形结构，有收缩路径和扩张路径。
• 它在生物医学图像分割任务中的成功是众所周知的。
• 跳过连接有助于物体的精确定位。

代码

导入库

import os
from glob import glob
import shutil
from pathlib import Path, PurePath
import json
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.utils.data import Dataset, DataLoader
from PIL import Image
import cv2
from sklearn.model_selection import train_test_split
import torchvision
from torchvision.transforms import transforms as T
from torchvision.utils import draw_bounding_boxes
from tqdm import tqdm
import albumentations as A
import time
%matplotlib inline
torch.manual_seed(42)

调用CUDA

device = torch.device('cuda' if torch.cuda.is_available() else "cpu")
device

加载数据集

IMAGES = '/kaggle/input/car-segmentation/car-segmentation/images/'
MASKS = '/kaggle/input/car-segmentation/car-segmentation/masks/'
classes = '/kaggle/input/car-segmentation/car-segmentation/classes.txt'
masks = '/kaggle/input/car-segmentation/car-segmentation/masks.json'

数据可视化

rows, cols = 3, 3
plt.figure(figsize=(15, 12))

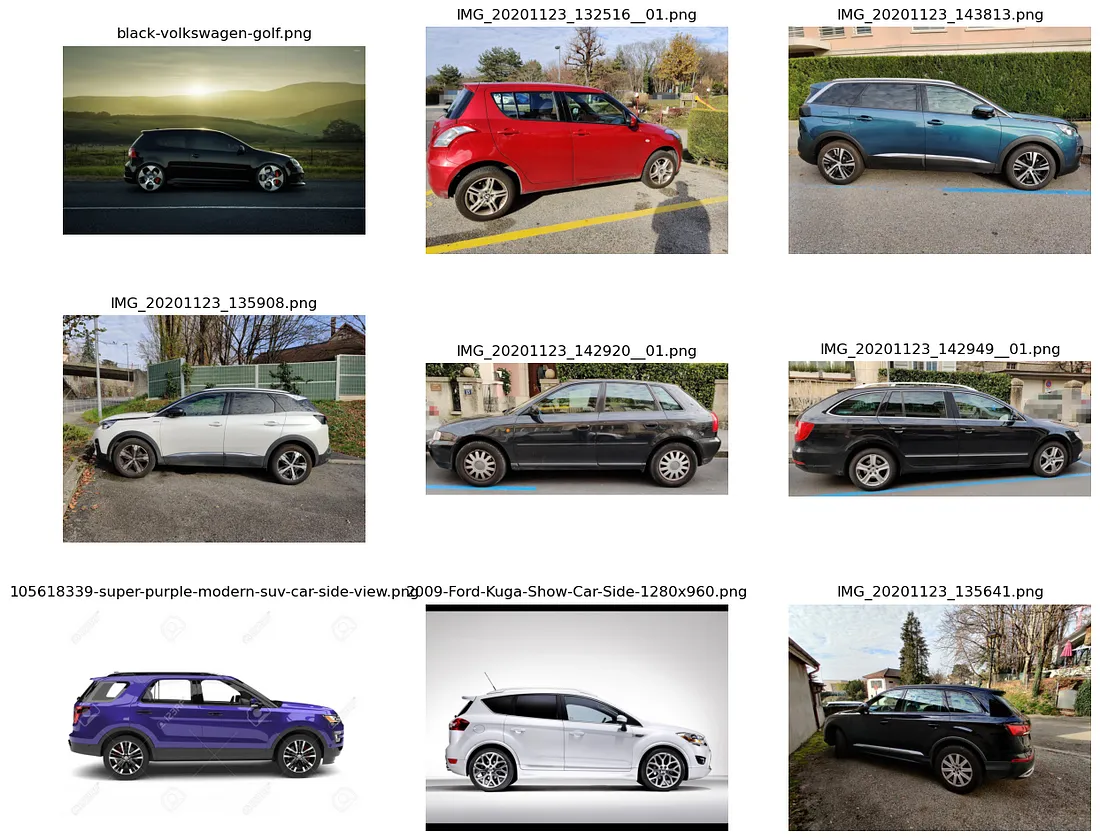

images = [IMAGES + i for i in os.listdir(IMAGES)]
shapes = []
for num, x in enumerate(images):
    if num == 9:
        break
    img = Image.open(x)
    shapes.append(img.size)
    plt.subplot(rows, cols, num+1)
    plt.title(Path(x).name)
    plt.axis('off')
    plt.imshow(img)
    img.close()

rows, cols = 3, 3
plt.figure(figsize=(15, 12))
mask_shapes = []

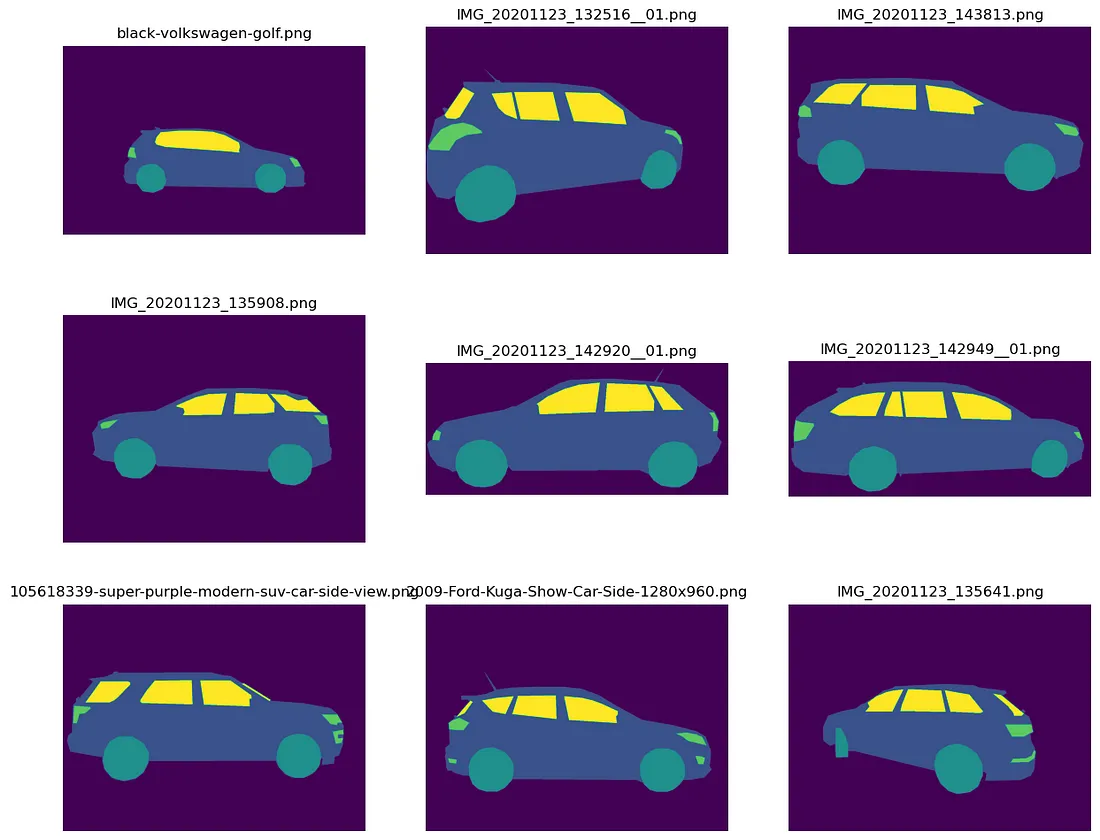

masks = [MASKS + i for i in os.listdir(MASKS)]
for num, x in enumerate(masks):
    if num == 9:
        break
    img = Image.open(x)
    mask_shapes.append(img.size)
    plt.subplot(rows, cols, num+1)
    plt.title(Path(x).name)
    plt.axis('off')
    plt.imshow(img)
    img.close()

数据准备

class CarDataset(Dataset):

    def __init__(self, image_path, mask_path, x, mean, std, transform=None, patch=False):
        self.img_path = image_path
        self.mask_path = mask_path
        self.x = x
        self.mean = mean
        self.std = std
        self.transform = transform
        self.patch = patch


    def __len__(self):
        return len(self.x)

    def __getitem__(self, idx):
        img = cv2.imread(self.img_path + self.x[idx])
        img = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)
        mask = cv2.imread(self.mask_path + self.x[idx])

        if self.transform is not None:
            aug = self.transform(image=img, mask=mask)
            img = Image.fromarray(aug['image'])
            mask = aug['mask']

        if self.transform is None:
            img = Image.fromarray(img)

        t = T.Compose([T.ToTensor(), T.Normalize(self.mean, self.std)])
        img = t(img)
        mask = torch.from_numpy(mask).to(torch.int64)

        if self.patch:
            img, mask = self.tiles(img, mask)

        return img, mask


    def tiles(self, img, mask):
        img_patches = img.unfold(1, size, size).unfold(2, size, size)
        img_patches = img_patches.contiguous().view(3, -1, size, size)
        img_patches = img_patches.permute(1, 0, 2, 3)

        mask_patches = mask.unfold(0, size, size).unfold(1, size, size)
        mask_patches = mask_patches.contiguous().view(-1, size, size)

        return img_patches, mask_patches

mean = [0.485, 0.456, 0.406]
std = [0.229, 0.224, 0.225]
t_train = A.Compose([A.Resize(size, size, interpolation=cv2.INTER_NEAREST),
                    A.VerticalFlip(),
                    A.HorizontalFlip(),
                    A.GridDistortion(p=0.2),
                    A.GaussNoise(),
                    A.RandomBrightnessContrast((0, 0.5), (0, 0.5)),])
t_val = A.Compose([A.Resize(size, size, interpolation=cv2.INTER_NEAREST),
                    A.HorizontalFlip(),
                    A.GridDistortion(p=0.2),])

train_dataset = CarDataset(IMAGES, MASKS, x_train, mean, std, t_train, patch=False)
val_dataset = CarDataset(IMAGES, MASKS, x_val, mean, std, t_val, patch=False)

batch_size = 3
train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True)
val_loader = DataLoader(val_dataset, batch_size=batch_size, shuffle=True)

U-Net架构

class UNet(nn.Module):

    def __init__(self, n_class):
        super().__init__()

        """
        Encoder
        Every block in encoder has 2 convolution layer followed by max pooling layer, except last block which do not have max pooling layer
        The input to the U-Net is 400*400*channels

        """

        self.enc_blk11 = nn.Conv2d(3, 64, kernel_size=3, padding=1)
        self.enc_blk12 = nn.Conv2d(64, 64, kernel_size=3, padding=1)
        self.pool = nn.MaxPool2d(kernel_size=2, stride=2)
        self.relu = nn.ReLU()

        self.enc_blk21 = nn.Conv2d(64, 128, kernel_size=3, padding=1)
        self.enc_blk22 = nn.Conv2d(128, 128, kernel_size=3, padding=1)

        self.enc_blk31 = nn.Conv2d(128, 128, kernel_size=3, padding=1)
        self.enc_blk32 = nn.Conv2d(128, 256, kernel_size=3, padding=1)

        self.enc_blk41 = nn.Conv2d(256, 512, kernel_size=3, padding=1)
        self.enc_blk42 = nn.Conv2d(512, 512, kernel_size=3, padding=1)

        self.enc_blk51 = nn.Conv2d(512, 1024, kernel_size=3, padding=1)
        self.enc_blk52 = nn.Conv2d(1024, 1024, kernel_size=3, padding=1)


        """
        Decoder
        Here Upsampling of layers are done
        """

        self.upconv1 = nn.ConvTranspose2d(1024, 512, kernel_size=2, stride=2)
        self.dec_blk11 = nn.Conv2d(1024, 512, kernel_size=3, padding=1)
        self.dec_blk12 = nn.Conv2d(512, 512, kernel_size=3, padding=1)

        self.upconv2 = nn.ConvTranspose2d(512, 256, kernel_size=2, stride=2)
        self.dec_blk21 = nn.Conv2d(512, 256, kernel_size=3, padding=1)
        self.dec_blk22 = nn.Conv2d(256, 256, kernel_size=3, padding=1)

        self.upconv3 = nn.ConvTranspose2d(256, 128, kernel_size=2, stride=2)
        self.dec_blk31 = nn.Conv2d(256, 128, kernel_size=3, padding=1)
        self.dec_blk32 = nn.Conv2d(128, 128, kernel_size=3, padding=1)

        self.upconv4 = nn.ConvTranspose2d(128, 64, kernel_size=2, stride=2)
        self.dec_blk41 = nn.Conv2d(128, 64, kernel_size=3, padding=1)
        self.dec_blk42 = nn.Conv2d(64, 64, kernel_size=3, padding=1)

        # Output Layer
        self.out_layer = nn.Conv2d(64, n_class, kernel_size=1)



    def forward(self, x):

        # Encoder
        enc11 = self.relu(self.enc_blk11(x))
        enc12 = self.relu(self.enc_blk12(enc11))
        pool1 = self.pool(enc12)
        enc21 = self.relu(self.enc_blk21(pool1))
        enc22 = self.relu(self.enc_blk22(enc21))
        pool2 = self.pool(enc22)
        enc31 = self.relu(self.enc_blk31(pool2))
        enc32 = self.relu(self.enc_blk32(enc31))
        pool3 = self.pool(enc32)
        enc41 = self.relu(self.enc_blk41(pool3))
        enc42 = self.relu(self.enc_blk42(enc41))
        pool4 = self.pool(enc42)
        enc51 = self.relu(self.enc_blk51(pool4))
        enc52 = self.relu(self.enc_blk52(enc51))

        # Decoder

        up1 = self.upconv1(enc52)
        up11 = torch.cat([up1, enc42], dim=1)
        dec11 = self.relu(self.dec_blk11(up11))
        dec12 = self.relu(self.dec_blk12(dec11))
        up2 = self.upconv2(dec12)
        up22 = torch.cat([up2, enc32], dim=1)
        dec21 = self.relu(self.dec_blk21(up22))
        dec22 = self.relu(self.dec_blk22(dec21))
        up3 = self.upconv3(dec22)
        up33 = torch.cat([up3, enc22], dim=1)
        dec31 = self.relu(self.dec_blk31(up33))
        dec32 = self.relu(self.dec_blk32(dec31))
        up4 = self.upconv4(dec32)
        up44 = torch.cat([up4, enc12], dim=1)
        dec41 = self.relu(self.dec_blk41(up44))
        dec42 = self.relu(self.dec_blk42(dec41))
        out = self.out_layer(dec42)

        return out

训练

def pixel_accuracy(output, mask):
    with torch.no_grad():
        output = torch.argmax(F.softmax(output, dim=1), dim=1)
        correct = torch.eq(output, mask).int()
        accuracy = float(correct.sum() / float(correct.numel()))
    return accuracy

def mIoU(pred_mask, mask, smooth=1e-10, n_classes=5):
    with torch.no_grad():
        pred_mask = F.softmax(pred_mask, dim=1)
        pred_mask = torch.argmax(pred_mask, dim=1)
        pred_mask = pred_mask.contiguous().view(-1)
        mask = mask.contiguous().view(-1)

        iou_per_class = []
        for classes in range(0, n_classes):
            true_class = (pred_mask == classes)
            true_label = (mask == classes)

            if true_label.long().sum().item() == 0:
                iou_per_class.append(np.nan)
            else:
                intersect = torch.logical_and(true_class, true_label).sum().float().item()
                union = torch.logical_or(true_class, true_label).sum().float().item()

                iou = (intersect + smooth) / (union + smooth)
                iou_per_class.append(iou)
        return np.nanmean(iou_per_class)

def get_lr(optimizer):
    for param_group in optimizer.param_groups:
        return param_group['lr']
def fit(epochs, model, train_loader, val_loader, criterion, optimizer, scheduler, patch=False):
    torch.cuda.empty_cache()
    train_losses = []
    test_losses = []
    val_iou = []
    val_acc = []
    train_iou = []
    train_acc = []
    lrs = []
    min_loss = np.inf
    decrease = 1
    not_improve = 0

    model.to(device)
    fit_time = time.time()
    for epoch in range(epochs):
        since = time.time()
        running_loss = 0
        iou_score = 0
        accuracy = 0

        # Training

        model.train()
        for i, data in enumerate(tqdm(train_loader)):

            #Training Phase
            image_tiles, mask_tiles = data
            bs, c, h, w = image_tiles.size()
            if patch:
                batch, n_tiles, c, h, w = image_tiles.size()
                image_tiles = image_tiles.view(-1, c, h, w)
                mask_tiles = mask_tiles.view(-1, h, w)
            else:
                mask_tiles = mask_tiles.view(bs, c, h, w)
                mask_tiles = mask_tiles.float()
                mask_tiles = torch.mean(mask_tiles, dim=1)
                mask_tiles = mask_tiles.long()


            image = image_tiles.to(device)
            mask = mask_tiles.to(device)
            # Forward Prop
            output = model(image)

            # Loss
            loss = criterion(output, mask)
            # Evaluation
            iou_score += mIoU(output, mask)
            accuracy += pixel_accuracy(output, mask)

            # Backpropogation
            loss.backward()
            # Updating weights
            optimizer.step()
            # Clearing gradients
            optimizer.zero_grad()


            lrs.append(get_lr(optimizer))
            scheduler.step()
            running_loss += loss.item()

        else:
            # Validation
            model.eval()
            test_loss = 0
            test_accuracy = 0
            val_iou_score = 0

            # Validation Phase
            with torch.no_grad():
                for i, data in enumerate(tqdm(val_loader)):
                    image_tiles, mask_tiles = data
                    bs, c, h, w = image_tiles.size()
                    if patch:
                        bs, n_tiles, c, h, w = image_tiles.size()
                        image_tiles = image_tiles.view(-1, c, h, w)
                        mask_tiles = mask_tiles.view(-1, h, w)
                    else:
                        print(mask_tiles.shape)
                        mask_tiles = mask_tiles.view(bs, c, h, w)
                        mask_tiles = mask_tiles.float()
                        mask_tiles = torch.mean(mask_tiles, dim=1)
                        mask_tiles = mask_tiles.long()


                    image = image_tiles.to(device)
                    mask = mask_tiles.to(device)

                    # Forward prop
                    output = model(image)

                    # Evaluation
                    val_iou_score += mIoU(output, mask)
                    test_accuracy += pixel_accuracy(output, mask)

                    # Loss
                    loss = criterion(output, mask)
                    test_loss += loss.item()

            # Calculating Mean for Each Batch
            train_losses.append(running_loss / len(train_loader))
            test_losses.append(test_loss / len(val_loader))

            if min_loss > (test_loss / len(val_loader)):
                print('Loss Decreasing.... {:.3f} >> {:.3f} '.format(min_loss, (test_loss / len(val_loader))))
                min_loss = (test_loss / len(val_loader))
                decrease += 1
                if decrease % 5 == 0:
                    print('Saving Model.......')
                    torch.save(model, '//kaggle//working//UNet-mIoU-{:.3f}.pt'.format(val_iou_score / len(val_loader)))

            if (test_loss / len(val_loader)) > min_loss:
                not_improve += 1
                min_loss = (test_loss / len(val_loader))
                print(f"Loss did not decrease for {not_improve} times")
                if not_improve == 7:
                    print('Loss did not decrease for 7 times, Stopped Training..')
                    break

            # IoU
            val_iou.append(val_iou_score / len(val_loader))
            train_iou.append(iou_score / len(train_loader))
            train_acc.append(accuracy / len(train_loader))
            val_acc.append(test_accuracy / len(val_loader))

            print("Epoch: {} / {} ".format(epoch + 1, epochs),
                  "Train Loss: {:.3f} ".format(running_loss / len(train_loader)),
                  "Val Loss: {:.3f} ".format(test_loss / len(val_loader)),
                  "Train mIoU: {:.3f} ".format(iou_score / len(train_loader)),
                  "Val mIoU: {:.3f} ".format(val_iou_score / len(val_loader)),
                  "Train Accuracy: {:.3f} ".format(accuracy / len(train_loader)),
                  "Val Accuracy: {:.3f} ".format(test_accuracy / len(val_loader)),
                  "Time: {:.2f}m".format((time.time() - since) / 60))

    history = {
        'train_loss': train_losses,
        "val_loss": test_losses,
        'train_miou' :train_iou,
        'val_miou':val_iou,
        'train_acc' :train_acc,
        'val_acc':val_acc,
        'lrs': lrs}

    print("Total time: {:.2f} m".format((time.time() - fit_time) /60 ))
    return history

model = UNet(l)
model.to(device)

亏损和MIoU

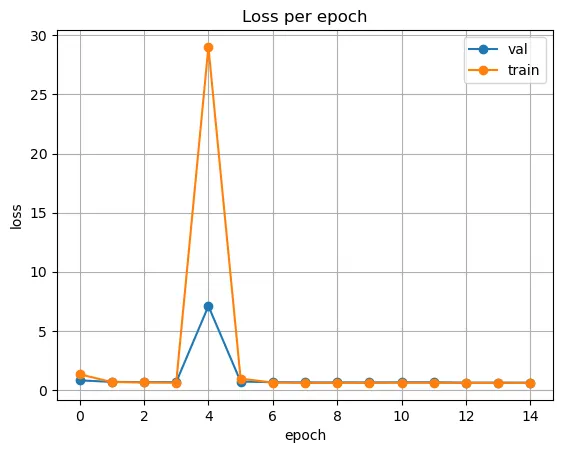

def plot_loss(history):
    plt.plot(history['val_loss'], label='val', marker='o')
    plt.plot( history['train_loss'], label='train', marker='o')
    plt.title('Loss per epoch'); plt.ylabel('loss');
    plt.xlabel('epoch')
    plt.legend(), plt.grid()
    plt.show()

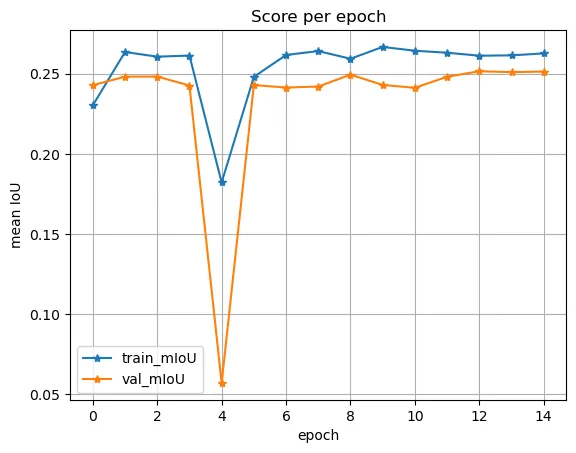

def plot_score(history):
    plt.plot(history['train_miou'], label='train_mIoU', marker='*')
    plt.plot(history['val_miou'], label='val_mIoU',  marker='*')
    plt.title('Score per epoch'); plt.ylabel('mean IoU')
    plt.xlabel('epoch')
    plt.legend(), plt.grid()
    plt.show()

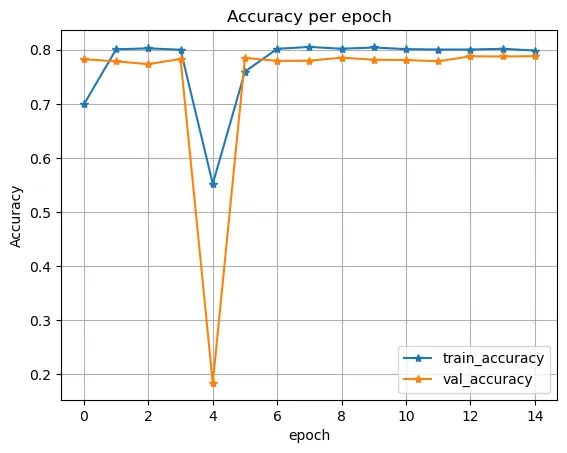

def plot_acc(history):
    plt.plot(history['train_acc'], label='train_accuracy', marker='*')
    plt.plot(history['val_acc'], label='val_accuracy',  marker='*')
    plt.title('Accuracy per epoch'); plt.ylabel('Accuracy')
    plt.xlabel('epoch')
    plt.legend(), plt.grid()
    plt.show()

plot_loss(history)
plot_score(history)
plot_acc(history)

输出可视化

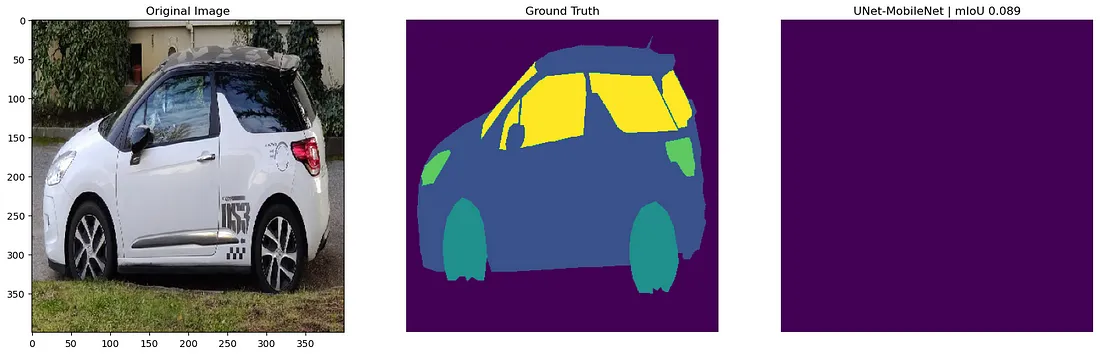

fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(20, 10))
ax1.imshow(image)
ax1.set_title('Original Image')
ax2.imshow(mask)
ax2.set_title('Ground Truth')
ax2.set_axis_off()
ax3.imshow(pred_mask)
ax3.set_title('UNet-MobileNet | mIoU {:.3f}'.format(score))
ax3.set_axis_off()
