与大型 PDF 对话很酷。你可以与你的笔记、书籍和文档等聊天。本文将帮助你构建一个基于 Multi RAG Streamlit 的网络应用程序,通过对话式人工智能聊天机器人读取、处理 PDF 数据并与之交互。下面将使用简单的语言逐步介绍该应用程序的工作原理,以便于理解。
使用必要的工具搭建舞台
应用程序首先要导入各种功能强大的库:
import streamlit as st
from PyPDF2 import PdfReader
from langchain.text_splitter import RecursiveCharacterTextSplitter
from langchain_core.prompts import ChatPromptTemplate
from langchain_community.embeddings.spacy_embeddings import SpacyEmbeddings
from langchain_community.vectorstores import FAISS
from langchain.tools.retriever import create_retriever_tool
from dotenv import load_dotenv
from langchain_anthropic import ChatAnthropic
from langchain_openai import ChatOpenAI, OpenAIEmbeddings
from langchain.agents import AgentExecutor, create_tool_calling_agent
import os
os.environ["KMP_DUPLICATE_LIB_OK"]="TRUE"
读取和处理 PDF 文件
我们应用程序的第一个主要功能就是读取 PDF 文件:
提取文本后,再将其分割成易于管理的文本块:
def pdf_read(pdf_doc):
text = ""
for pdf in pdf_doc:
pdf_reader = PdfReader(pdf)
for page in pdf_reader.pages:
text += page.extract_text()
return text
def get_chunks(text):
text_splitter = RecursiveCharacterTextSplitter(chunk_size=1000, chunk_overlap=200)
chunks = text_splitter.split_text(text)
return chunks
创建可搜索文本数据库并进行嵌入
为使文本可搜索,应用程序将文本块转换为矢量表示:
embeddings = SpacyEmbeddings(model_name="en_core_web_sm")
def vector_store(text_chunks):
vector_store = FAISS.from_texts(text_chunks, embedding=embeddings)
vector_store.save_local("faiss_db")
设置对话式人工智能
本应用程序的核心是对话式人工智能,它使用 OpenAI 的强大模型:
def get_conversational_chain(tools, ques):
llm = ChatOpenAI(model_name="gpt-3.5-turbo", temperature=0, api_key="")
prompt = ChatPromptTemplate.from_messages([...])
tool=[tools]
agent = create_tool_calling_agent(llm, tool, prompt)
agent_executor = AgentExecutor(agent=agent, tools=tool, verbose=True)
response=agent_executor.invoke({"input": ques})
print(response)
st.write("Reply: ", response['output'])
def user_input(user_question):
new_db = FAISS.load_local("faiss_db", embeddings,allow_dangerous_deserialization=True)
retriever=new_db.as_retriever()
retrieval_chain= create_retriever_tool(retriever,"pdf_extractor","This tool is to give answer to queries from the pdf")
get_conversational_chain(retrieval_chain,user_question)
用户互动
后台准备就绪后,应用程序将使用 Streamlit 创建用户友好界面:
def main():
st.set_page_config("Chat PDF")
st.header("RAG based Chat with PDF")
user_question = st.text_input("Ask a Question from the PDF Files")
if user_question:
user_input(user_question)
with st.sidebar:
pdf_doc = st.file_uploader("Upload your PDF Files and Click on the Submit & Process Button", accept_multiple_files=True)
if st.button("Submit & Process"):
with st.spinner("Processing..."):
raw_text = pdf_read(pdf_doc)
text_chunks = get_chunks(raw_text)
vector_store(text_chunks)
st.success("Done")
结论
完整代码
import streamlit as st
from PyPDF2 import PdfReader
from langchain.text_splitter import RecursiveCharacterTextSplitter
from langchain_core.prompts import ChatPromptTemplate
from langchain_community.embeddings.spacy_embeddings import SpacyEmbeddings
from langchain_community.vectorstores import FAISS
from langchain.tools.retriever import create_retriever_tool
from dotenv import load_dotenv
from langchain_anthropic import ChatAnthropic
from langchain_openai import ChatOpenAI, OpenAIEmbeddings
from langchain.agents import AgentExecutor, create_tool_calling_agent
import os
os.environ["KMP_DUPLICATE_LIB_OK"]="TRUE"
embeddings = SpacyEmbeddings(model_name="en_core_web_sm")
def pdf_read(pdf_doc):
text = ""
for pdf in pdf_doc:
pdf_reader = PdfReader(pdf)
for page in pdf_reader.pages:
text += page.extract_text()
return text
def get_chunks(text):
text_splitter = RecursiveCharacterTextSplitter(chunk_size=1000, chunk_overlap=200)
chunks = text_splitter.split_text(text)
return chunks
def vector_store(text_chunks):
vector_store = FAISS.from_texts(text_chunks, embedding=embeddings)
vector_store.save_local("faiss_db")
def get_conversational_chain(tools,ques):
#os.environ["ANTHROPIC_API_KEY"]=os.getenv["ANTHROPIC_API_KEY"]
#llm = ChatAnthropic(model="claude-3-sonnet-20240229", temperature=0, api_key=os.getenv("ANTHROPIC_API_KEY"),verbose=True)
llm = ChatOpenAI(model_name="gpt-3.5-turbo", temperature=0, api_key="")
prompt = ChatPromptTemplate.from_messages(
[
(
"system",
"""You are a helpful assistant. Answer the question as detailed as possible from the provided context, make sure to provide all the details, if the answer is not in
provided context just say, "answer is not available in the context", don't provide the wrong answer""",
),
("placeholder", "{chat_history}"),
("human", "{input}"),
("placeholder", "{agent_scratchpad}"),
]
)
tool=[tools]
agent = create_tool_calling_agent(llm, tool, prompt)
agent_executor = AgentExecutor(agent=agent, tools=tool, verbose=True)
response=agent_executor.invoke({"input": ques})
print(response)
st.write("Reply: ", response['output'])
def user_input(user_question):
new_db = FAISS.load_local("faiss_db", embeddings,allow_dangerous_deserialization=True)
retriever=new_db.as_retriever()
retrieval_chain= create_retriever_tool(retriever,"pdf_extractor","This tool is to give answer to queries from the pdf")
get_conversational_chain(retrieval_chain,user_question)
def main():
st.set_page_config("Chat PDF")
st.header("RAG based Chat with PDF")
user_question = st.text_input("Ask a Question from the PDF Files")
if user_question:
user_input(user_question)
with st.sidebar:
st.title("Menu:")
pdf_doc = st.file_uploader("Upload your PDF Files and Click on the Submit & Process Button", accept_multiple_files=True)
if st.button("Submit & Process"):
with st.spinner("Processing..."):
raw_text = pdf_read(pdf_doc)
text_chunks = get_chunks(raw_text)
vector_store(text_chunks)
st.success("Done")
if __name__ == "__main__":
main()
将应用程序保存为 app.py,然后使用
streamlit run app.py

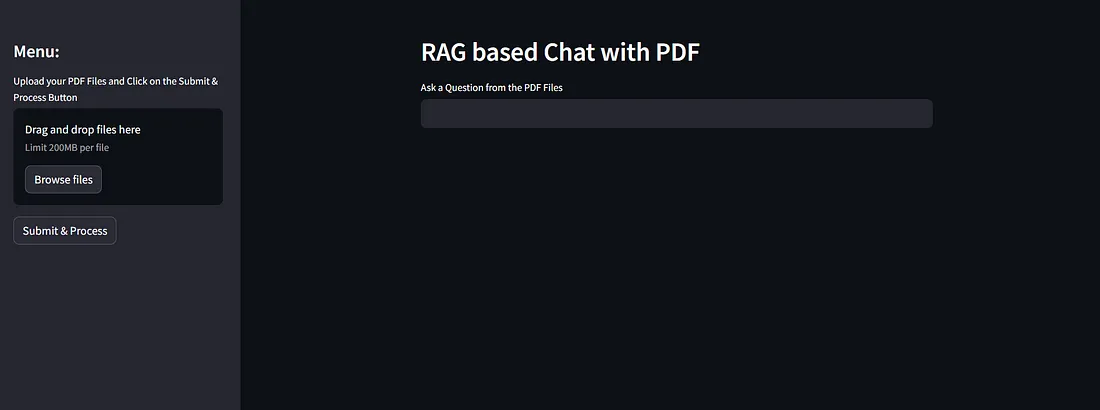

输出:
