用比喻方法理解生成式对抗网络GAN

理解生成式对抗网络GAN的最简单方法是通过一个简单的比喻：

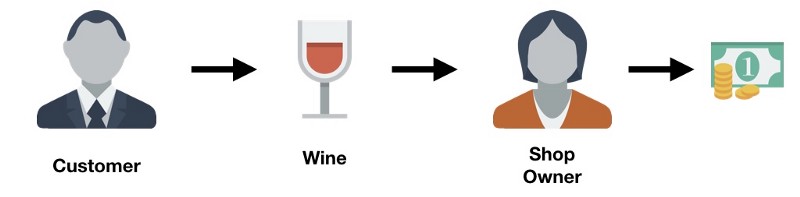

假设有一家商店从顾客那里购买某些种类的葡萄酒，之后进行再销售。

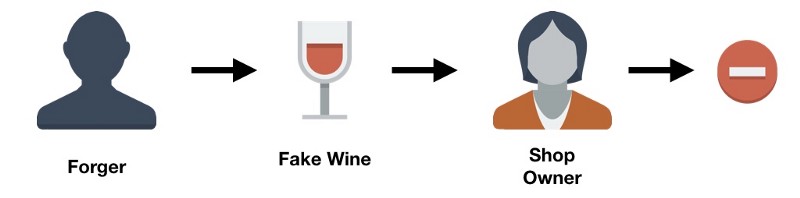

可以想象，最初，伪造者在尝试出售假酒时可能会犯很多错误，并且店主很容易认定该酒是假的。由于这些失败，伪造者会继续尝试使用不同的技术来模拟真正的葡萄酒，有些最终会成功。现在，伪造者知道某些技术已经可以骗过店主的检查，他可以开始根据这些技术进一步改进假冒葡萄酒。

同时，店主可能会从其他店主或葡萄酒专家那里得到一些反馈，说明她拥有的一些葡萄酒不是原装的。这意味着店主必须改善她鉴定葡萄酒的技术。伪造者的目标是制造与真实葡萄酒无法区分的葡萄酒，而店主的目标是准确地分辨葡萄酒是否真实。

这种来回的竞争是生成式对抗网络（GAN）背后的主要思想。

生成式对抗网络的组成部分

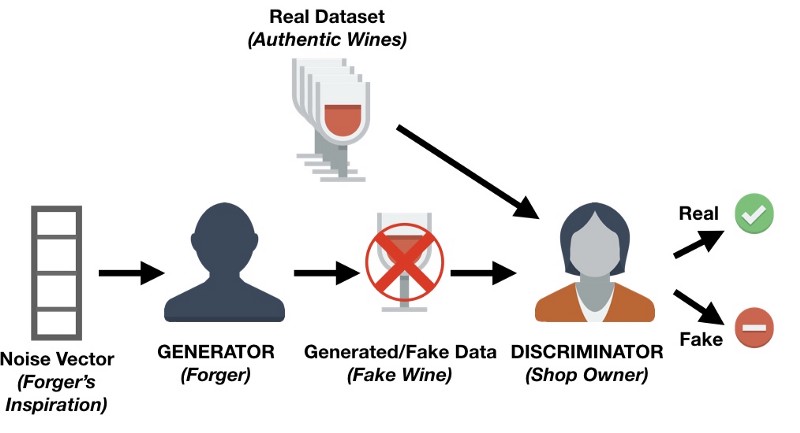

使用上面的例子，我们可以想出一个生成式对抗网络GAN的架构。

GAN中有两个主要组件：生成器和鉴别器。这个比喻中的店主被称为鉴别器网络，并且通常是卷积神经网络（因为GAN主要用于图像任务），其指定图像为真实的概率。

伪造者一般称为生成网络，并且通常也是卷积神经网络（具有反卷积层）。该网络需要一些噪声矢量并输出图像。在训练生成网络时，它会学习图像的哪些区域进行改进/更改，以便鉴别器将难以将其生成的图像与真实图像区分开来。

生成网络不断生成更接近真实图像的图像，而鉴别网络试图确定真实图像和假图像之间的差异。最终的目标是建立一个可生成与真实图像无法区分的图像的生成网络。

使用Keras做一个简单的生成式对抗网络GAN

-  keras

-  matplotlib

-  tensorflow

-  tqdm

import os

import numpy as np

import matplotlib.pyplot as plt

from tqdm import tqdm





from keras.layers import Input

from keras.models import Model, Sequential

from keras.layers.core import Dense, Dropout

from keras.layers.advanced_activations import LeakyReLU

from keras.datasets import mnist

from keras.optimizers import Adam

from keras import initializers

# Let Keras know that we are using tensorflow as our backend engine

os.environ["KERAS_BACKEND"] = "tensorflow"

# To make sure that we can reproduce the experiment and get the same results

np.random.seed(10)

# The dimension of our random noise vector.

random_dim = 100

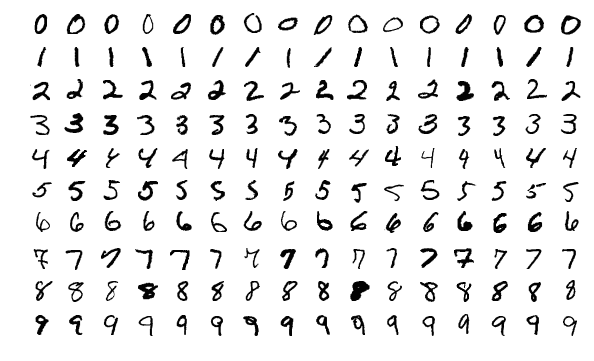

MINST数字的例子

def load_minst_data():

    # load the data

    (x_train, y_train), (x_test, y_test) = mnist.load_data()

    # normalize our inputs to be in the range[-1, 1]

    x_train = (x_train.astype(np.float32) - 127.5)/127.5

    # convert x_train with a shape of (60000, 28, 28) to (60000, 784) so we have

    # 784 columns per row

    x_train = x_train.reshape(60000, 784)

    return (x_train, y_train, x_test, y_test)

def get_optimizer():

    return Adam(lr=0.0002, beta_1=0.5)



def get_generator(optimizer):

    generator = Sequential()

    generator.add(Dense(256, input_dim=random_dim, kernel_initializer=initializers.RandomNormal(stddev=0.02)))

    generator.add(LeakyReLU(0.2))



    generator.add(Dense(512))

    generator.add(LeakyReLU(0.2))



    generator.add(Dense(1024))

    generator.add(LeakyReLU(0.2))



    generator.add(Dense(784, activation='tanh'))

    generator.compile(loss='binary_crossentropy', optimizer=optimizer)

    return generator



def get_discriminator(optimizer):

    discriminator = Sequential()

    discriminator.add(Dense(1024, input_dim=784, kernel_initializer=initializers.RandomNormal(stddev=0.02)))

    discriminator.add(LeakyReLU(0.2))

    discriminator.add(Dropout(0.3))



    discriminator.add(Dense(512))

    discriminator.add(LeakyReLU(0.2))

    discriminator.add(Dropout(0.3))



    discriminator.add(Dense(256))

    discriminator.add(LeakyReLU(0.2))

    discriminator.add(Dropout(0.3))



    discriminator.add(Dense(1, activation='sigmoid'))

    discriminator.compile(loss='binary_crossentropy', optimizer=optimizer)

    return discriminator

def get_gan_network(discriminator, random_dim, generator, optimizer):

    # We initially set trainable to False since we only want to train either the

    # generator or discriminator at a time

    discriminator.trainable = False

    # gan input (noise) will be 100-dimensional vectors

    gan_input = Input(shape=(random_dim,))

    # the output of the generator (an image)

    x = generator(gan_input)

    # get the output of the discriminator (probability if the image is real or not)

    gan_output = discriminator(x)

    gan = Model(inputs=gan_input, outputs=gan_output)

    gan.compile(loss='binary_crossentropy', optimizer=optimizer)

    return gan

def plot_generated_images(epoch, generator, examples=100, dim=(10, 10), figsize=(10, 10)):

    noise = np.random.normal(0, 1, size=[examples, random_dim])

    generated_images = generator.predict(noise)

    generated_images = generated_images.reshape(examples, 28, 28)



    plt.figure(figsize=figsize)

    for i in range(generated_images.shape[0]):

        plt.subplot(dim[0], dim[1], i+1)

        plt.imshow(generated_images[i], interpolation='nearest', cmap='gray_r')

        plt.axis('off')

    plt.tight_layout()

    plt.savefig('gan_generated_image_epoch_%d.png' % epoch)

def train(epochs=1, batch_size=128):

    # Get the training and testing data

    x_train, y_train, x_test, y_test = load_minst_data()

    # Split the training data into batches of size 128

    batch_count = x_train.shape[0] / batch_size



    # Build our GAN netowrk

    adam = get_optimizer()

    generator = get_generator(adam)

    discriminator = get_discriminator(adam)

    gan = get_gan_network(discriminator, random_dim, generator, adam)



    for e in xrange(1, epochs+1):

        print '-'*15, 'Epoch %d' % e, '-'*15

        for _ in tqdm(xrange(batch_count)):

            # Get a random set of input noise and images

            noise = np.random.normal(0, 1, size=[batch_size, random_dim])

            image_batch = x_train[np.random.randint(0, x_train.shape[0], size=batch_size)]



            # Generate fake MNIST images

            generated_images = generator.predict(noise)

            X = np.concatenate([image_batch, generated_images])



            # Labels for generated and real data

            y_dis = np.zeros(2*batch_size)

            # One-sided label smoothing

            y_dis[:batch_size] = 0.9



            # Train discriminator

            discriminator.trainable = True

            discriminator.train_on_batch(X, y_dis)



            # Train generator

            noise = np.random.normal(0, 1, size=[batch_size, random_dim])

            y_gen = np.ones(batch_size)

            discriminator.trainable = False

            gan.train_on_batch(noise, y_gen)

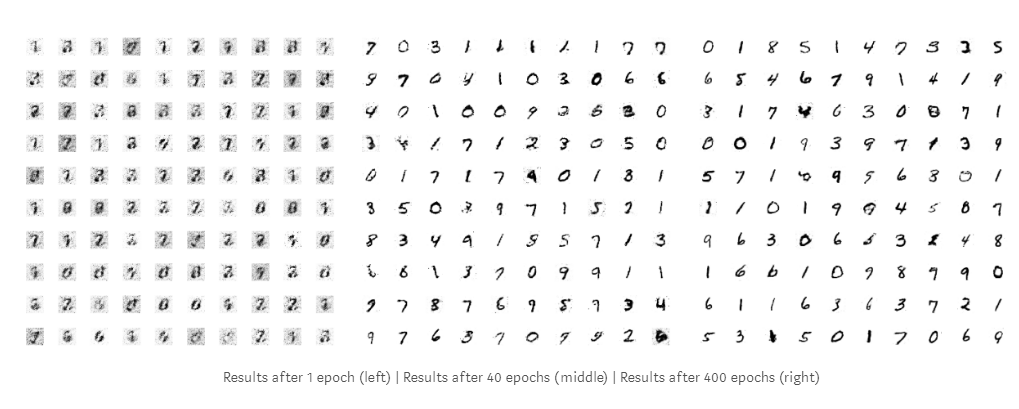

        if e == 1 or e % 20 == 0:

            plot_generated_images(e, generator)



if __name__ == '__main__':

    train(400, 128)

结论

恭喜，你已经完成了本教程的最后部分，你将以直观的方式学习生成式对抗网络（GAN）的基础知识！另外，你在Keras库的帮助下实现了这个模型。
